Using Wunda Home Application

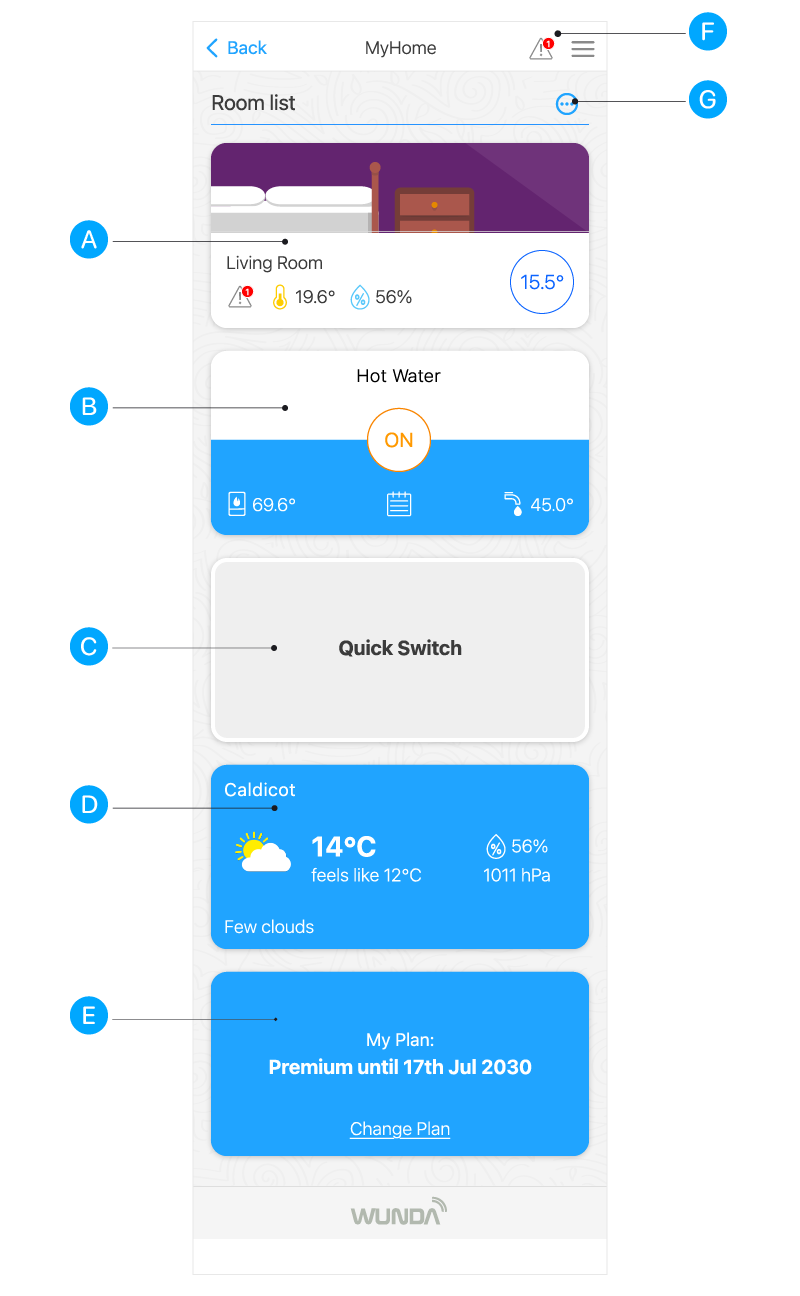

MyHome screen

1. Room Tile: Displays information on the room’s temperature setpoint, thermostat values and alerts. Tap the tile to be redirected to the room screen, tap the circle to change the room’s setpoint or resume the schedule without going into the room screen.
2. Hot Water Tile: If the system is configured to control hot water this tile will show you the current status of the hot water schedule “On/Off”. When connected via OpenTherm it also displays information about the hot water temperature and setpoint. Tap the tile to be redirected to the hot water screen, tap the status circle to resume schedule, boost or turn off the hot water.
3. Quick Switch: Allows a quick change to the temperature in all rooms to one of the preset temperature values or resume scheduling.
4. Weather Tile: (Available in the Premium Plan) Displays the weather conditions for the location defined by the HubSwitch. This data is used for boiler weather compensation control (a feature available when the boiler is connected via OpenTherm).
5. MyPlan Tile: Displays the current status of the plan connected to the HubSwitch. Tap to be redirected to a webpage where you can manage the plan.
6. Alerts: Displays a list of alerts in the rooms, such as weak batteries, lost connections, floor temperature warnings.
7. Context Menu: Shows a sub-menu for MyHome with options to:

1. Add New Room
2. Reorder the Tile List
3. Toggle between Compact and Full List Views
