Using Wunda Home Application

System Settings

Here’s how you can configure your home system, check devices, and set system parameters:

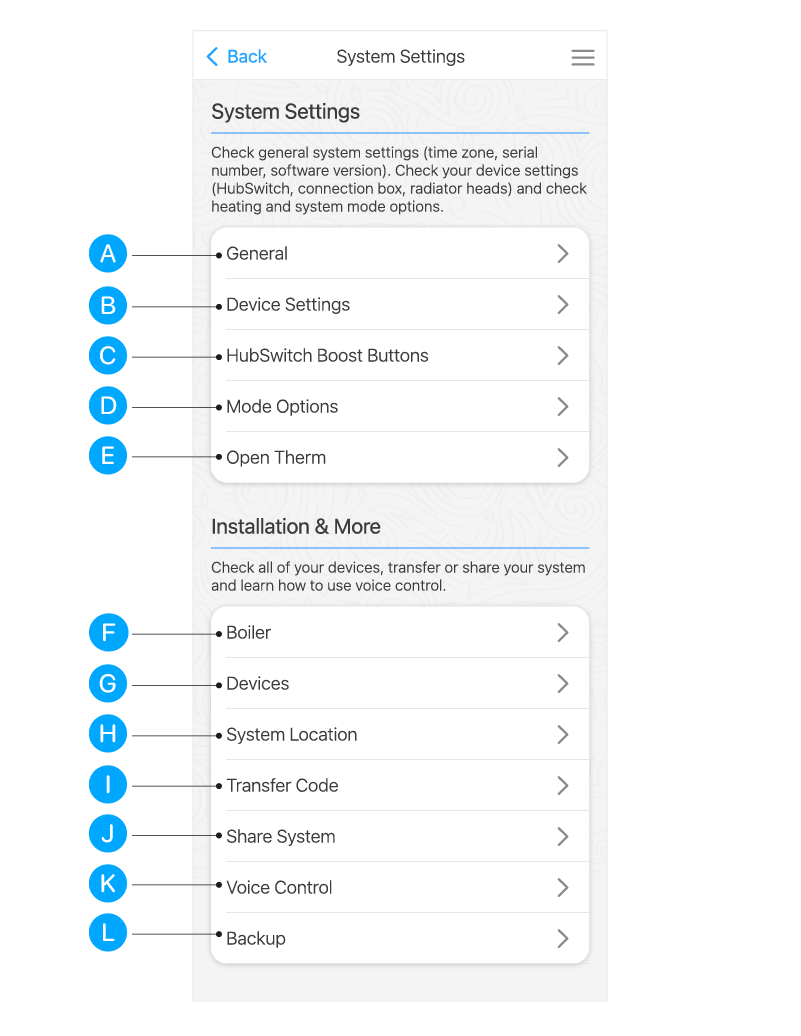

System Settings

3. General: View information about your HubSwitch, set the local timezone (which doesn’t affect scheduling), and check WiFi status and signal strength.
4. Device Settings:
• Review the HubSwitch’s channel configuration (set with the dip switches on the back of the HubSwitch, choose 4 channel heating or 3 channel heating and hot water when set in the 4 channel configuration) and to see what channels are currently active.
• Set the time and day that the Radiator Heads automatically calibrate.
• If paired with the system, configure the settings for the underfloor heating connection box(es), pump delay on/off & the switching differential.
5. Boost Buttons: Configure the actions and duration for Boost Buttons when pressed on the HubSwitch.
6. Mode Options:

• System Mode: Choose between Heating or OFF and set the Antifreeze temperature.
• Room Temperature Restrictions: (Owner only) Set minimum and maximum temperature limits for the room.
• Holiday Mode: Set start and end dates/times for turning off heating while you’re away.
• Open Window Detection: Define the temperature drop needed within 2 minutes to activate Open Window Mode and set the heating pause duration.
• Scheduling Adaptive Mode: Edit the list of rooms for Adaptive Mode and set its maximum duration.
• Radiator Head Mode: Test radiator heads performance by fully opening or closing all radiator heads,adjust the algorithm radiator heads work with (PID, Limited PID or On/Off),set the minimum heating value that the heads need to open before requesting heat and the switching differential if the algorithm is set to “On/Off”.

5. OpenTherm: (Available with OpenTherm connection) Check the communication status of the OpenTherm connection.

Installation & More

6. Boiler: Check boiler status. With OpenTherm, you can set the boiler temperature setpoint. Premium Plan users can also use Boiler Setpoint Modulation orWeather Compensation.
7. Devices: View all connected devices, identify what room a device is paired with, see detailed information (battery levels, signal strength) and add new devices if needed.
8. System Location: Set your system’s location for Geo-Fencing and Weather Compensation (available in the Premium Plan).
9. Transfer Code: Create a new code to transfer the system to a new owner.
10. Share System: With the Premium Plan, invite up to 3 cohabitants and define their privileges: Full or Read-Only.
11. Voice Control: Follow instructions to connect your system with Alexa or Google Assistant.
12. Backup: (Available in the Premium Plan) Archive your system configuration and automatically restore it if you need to replace the HubSwitch or perform a factory reset.
