Wunda Smart User Guide

How to use your Boost Buttons?

The Boost Buttons were designed to give an additional way to turn on heating or hot water, without having to use the application.. The Boost Buttons can be found on the front of the HubSwitch and are named Boost 1 and Boost 2. Once configured, pressing one of the Boost Buttons will raise the temperature in the predefined room(s) for a predefined time period (the default is 1 hour). They can also be configured to boost hot water if the system has been configured to control this.

Configuring the Boost Buttons:

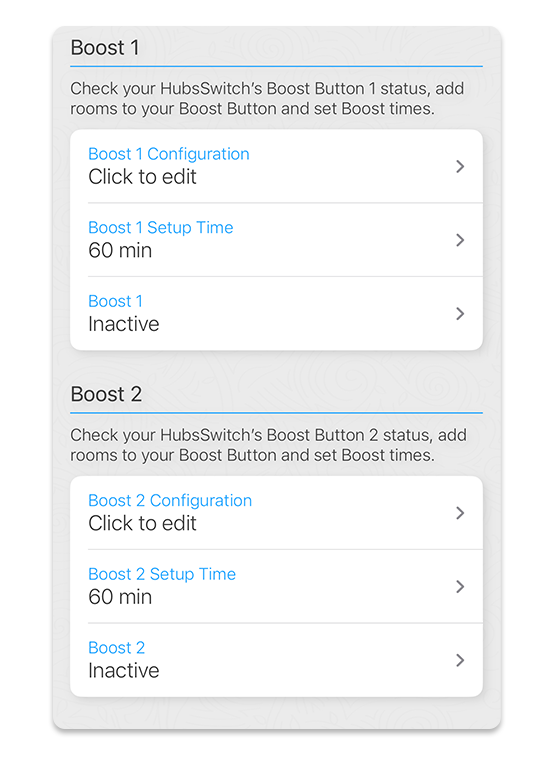

1. Go to System Settings in the App and select the Boost tab.
2. Tap “Boost 1 or 2 configuration” to choose which Boost Button you wish to configure.
3. Select which room(s) you wish to set to the Comfort temperature when this boost is active, or select Hot Water and tap “OK” to save.
4. Tap “Boost 1 or 2 Setup Time” to define the boost period (min 30 minutes, max 6 hours) and tap “Set” to save.
5. Once configured pressing Boost 1 or Boost 2 on the HubSwitch will boost the predefined rooms or hot water for the predefined time periods you have set.



Using the Boost Button for Room heating:

1. Press the configured button, the LED above will emit a green light, the heating will be switched to Comfort mode in the predefined room(s) for the pre-set time (by default is 1 hour).
2. Press the configured button again, the LED above will stop emitting the green light and the heating will return to the previous operating temperature allowing you to end the “boost” period.



Using the Boost Button for Hot Water:

1. Press the configured button, the LED above will emit a green light, the hot water will switch on for the predefined period (by default this is 1 hour).
2. Press the configured button again, the LED above will stop emitting a green light, the hot water will resume the set schedule, ending the “boost” period.
